Technical Parameters
Detail Infomation

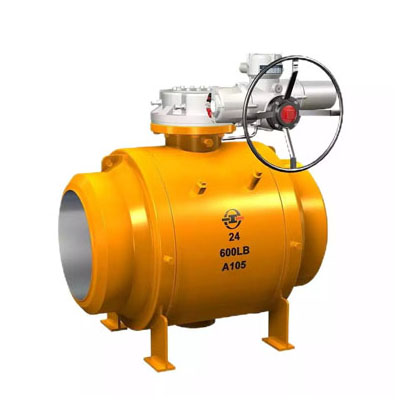

Fully Welded Floating Ball Valve
Standard: API 6D
Material: ASTM A105
Size: 24 Inch, DN600
Pressure: Class 600 LB, PN100
End Connection: Butt Welded
Test: API 598
Temperature Range: -196℃ - 650℃
Feature: Self Cavity Pressure Relief Floating Ball Valve, Anti Static Floating Ball Valve
Product Range
Body Material: ASTM A105, F304, F316, LF2, F11, F22
Size Range: 3 Inch - 40 Inch
Rating: ASME CL150, CL300, CL600, CL900, CL1500 Operation: Electric, pneumatic, manual, lever, wrench, gear, hydraulic
Applicable Standards:Ball Valve design according to API 6D, ISO 17292, ASME B16.34
Face to Face ASME B16.10, API 6D
Fire Safety ISO 10497, API 607, API 6FA, BS 6755-2
InspectionButt Welded ends ASME B16.25 and test API 598, API 6D
