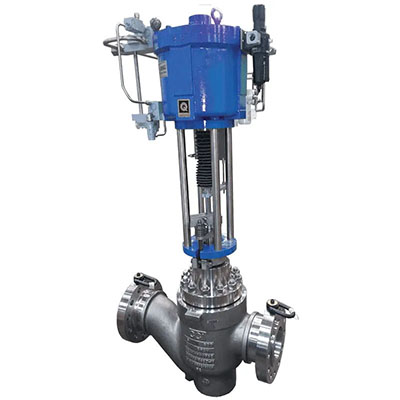

- 100 Series Pneumatic Angle Seat Valve
Technical Parameters
Body style: Globe
Velocity controlling stages: Up to 20
Materials: ASTM A216 WCC, ASTM A216 WCB, ASTM A217 WC6
Sizes: 2 Inch, 3 Inch, 4 Inch, 5 Inch, 6 Inch, 7 Inch, 8 Inch, 9 Inch
Pressure Ratings: ASME B16.34 Class 1500 LB, 2500 LB
Guiding: Disk Stack
Plug Design: Balanced
Characteristic: Equal Percentage
Rangeability: Designed to meet application needs, minimum of 30:1, over 80:1 possible
Shut-off capabilities: ANSI FCI 70-2 class IV, class V
Feature:
? Features a multiple ring Teflon packing design.
? Offers customizable flow characterization.
? Equipped with a high-integrity, spring-energized Teflon balance seal or an optional graphite seal.
? Achieves Class V metal seat shut-off with a 500 PLI loading force for a tight seal.
? Custom designs are available for high-temperature and specialized applications.
? Incorporates a disk stack labyrinth groove design to disrupt clearance flow and prevent seat ring damage.
