Technical Parameters
The control valve is engineered with the latest advancements in control valve technology, making it ideal for a range of fossil power and specific oil and gas applications. It is designed for semi-severe service conditions that demand anti-cavitation or low-noise trim. High pressure drops often lead to issues such as erosion, noise, and vibration, which can impact process control and overall plant performance.
The control valve is well-suited for applications including heater drains, condensate water, steam service, spray water, level control, pressure control, and flow control. Its design addresses the challenges of high pressure differentials, ensuring reliable and efficient operation across various demanding applications.

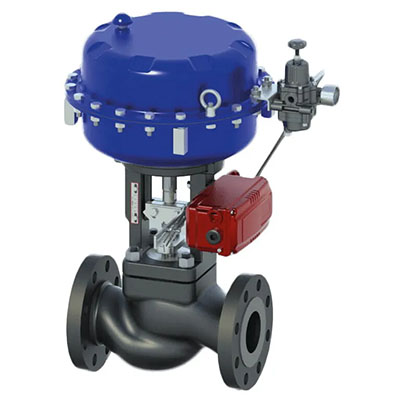

Product Name: Top-Entry Control Valve
Sizes: 1/2 Inch, 3/4 Inch, 1 Inch, 2 Inch, 3 Inch, 4 Inch, 5 Inch, 6 Inch
Pressure Ratings: Class 150 LB, 300 LB
Materials: Carbon Steel, Stainless Steel
End Connection: Raised Face Flange, Weld End
Flow Characterisation: Linear or equal percentage to suit application
Temperature Range:
? -46ˇăC - 350ˇăC for unbalanced trim
? -46ˇăC - 200ˇăC for balanced trim
Feature:
? Multi-spring design enhances hysteresis and dead band performance.
? Proven trim design features a single P-port and a drilled-hole cage.
? Fail mode options include fail-to-close and fail-to-open on loss of air.
? Screwed seat design allows easy inspection of all internal parts by removing the bonnet.
? A full range of accessories is available to meet various requirements.
