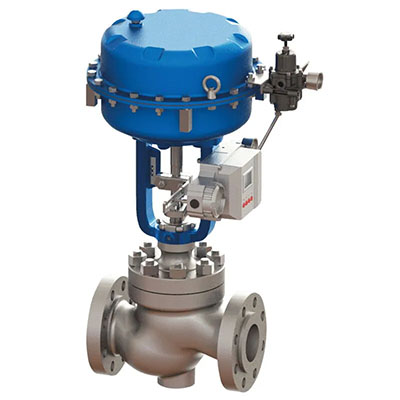

Multi-Spring Diaphragm Actuator Control Valve
- Home
- Products
- Industrial Valve
- Angle Seat Valve
- Pneumatic angle seat valve
- 100 Series Pneumatic Angle Seat Valve
Technical Parameters
Product Name: Multi-Spring Diaphragm Actuator Control Valve
Body Type: Globe
Sizes: 1 Inch, 1-1/2 Inch, 2 Inch, 3 Inch, 4 Inch, 6 Inch, 8 Inch
Pressure Ratings: Class 150 LB, 300 LB
Materials: Carbon Steel, Stainless Steel
End Connection: Raised Face Flange, Weld End
Flow Characterisation: Linear or equal percentage
Seat Leakage: Standard ANSI class IV, Optional ANSI class V or VI
Seat Type: Gasket
Actuator Type: Pneumatic, electric
Temperature Range:
? -46ˇăC - 565ˇăC for unbalanced trim
? -46ˇăC - 315ˇăC for balanced trim
Feature:
? Quick Change Trim: Features a design with no screwed or welded trim components, allowing for straightforward and quick trim replacement.
? Proven Trim Design: Includes a range of proven designs such as ported cage, drilled-hole cage, flare-hole cage, and cascade anti-cavitation trims to address various application needs.
? Multi-Spring Diaphragm Actuator: The multi-spring design improves both hysteresis and dead band performance, ensuring more precise control.
? Accessories: A full selection of accessories is available to meet diverse operational requirements.
