Technical Parameters

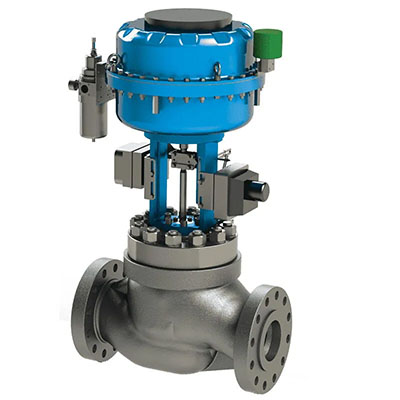

Product Name: Pneumatic Single Acting Diaphragm Control Valve
Standard: ASME B16.34
Sizes: 1 Inch, 1-1/2 Inch, 2 Inch, 3 Inch, 4 Inch, 6 Inch, 8 Inch, 10 Inch, 12 Inch
Pressure Ratings: Class 150 LB, 300 LB, 600 LB, 900 LB
Materials: ASTM A216 WCC, ASTM A105, ASTM A352 LCC, ASTM A351 CF8M, ASTM A995 4A
Trim: SS 316
End Connection: RF/RTJ End
Trim Characterisation: Linear/equal percentage
Shut-off class: ANSI/FCI Class IV & V
Actuator Type: Single acting pneumatic diaphragm, Double acting pneumatic piston
Temperature Range: -60ˇăC to 230ˇăC
Feature:
? Multi-trim solution designed for high flow and advanced noise abatement.
? Compact and modular design.
? Accommodates multiple trim sizes within a single valve body envelope.
? Suitable for onshore, offshore, and maritime applications.
? Certified for Class A fugitive emissions.
? Features a high-performance pneumatic actuator.
