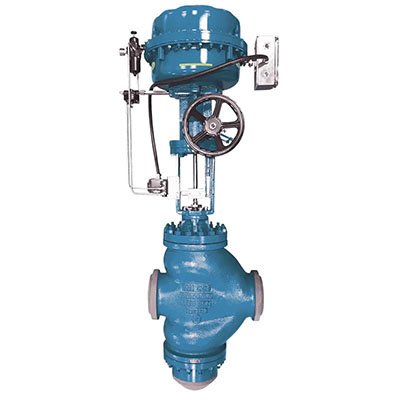

3-Way Control Valve
- Home
- Products
- Industrial Valve
- Angle Seat Valve
- Pneumatic angle seat valve
- 100 Series Pneumatic Angle Seat Valve
Technical Parameters
Product Name: Three Way Control Valve
Sizes: 1 Inch, 2 Inch, 3 Inch, 4 Inch, 6 Inch, 8 Inch, 10 Inch
Pressure Ratings: Class 150 LB, 300 LB
Materials: ASTM A351 CF8, ASTM A351 CF8M
Trim: SS 316
End Connection: RF/FF End
Trim Characterisation: Linear
Seat Type: Screwed Double Seat
Actuator Type: Diaphragm
Maximum design temperature: -60ˇăC to 230ˇăC
Feature:
? High Capacity: Large, streamlined passages enable higher flow rates, optimizing mixing and diverting processes.
? Flexibility: This valve offers a broad range of configurations to meet diverse application requirements.
? Stable Operation: Multiple guides along the cage and stem ensure smooth plug movement, contributing to stable and reliable operation.
? Durability: Engineered with tight tolerances and multiple guides, the durable design guarantees a trouble-free service life.
