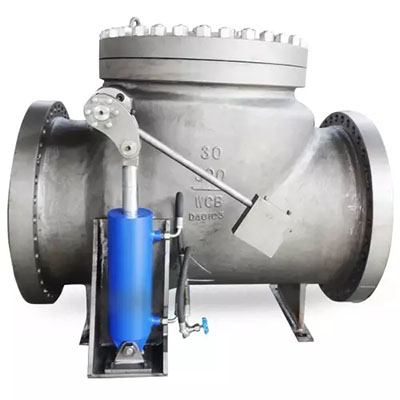

Cylinder Swing Check Valve
- Home
- Products
- Industrial Valve
- Angle Seat Valve
- Pneumatic angle seat valve
- 100 Series Pneumatic Angle Seat Valve
Technical Parameters
Valve Description
Design standard: API 6D, BS 1868
Body material: ASTM A216 WCB
Nominal diameter: 30 Inch
Pressure: Class 300 LB
Face to face: ASME B16.10
Test and inspection: API 598
End connection: RF
Working temperature: -29℃ - +400℃
Product Range
Body material: Low-Temperature Carbon Steel, Carbon Steel, Stainless Steel
Normal diameter: 2-60 Inch (DN50-DN1500)
Pressure range: Class 150-2500 LB (PN16-PN420)
Working temperature: -29℃ - +400℃
End connection: BW, Flanged
