Technical Parameters

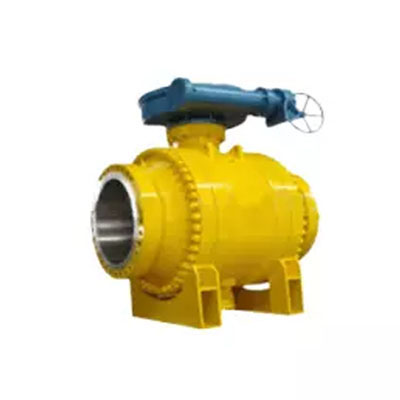

Valve Type: Floating Ball Valve
Feature: Quarter Turn, 2 Way
Standard: API 608
Fire Safe: API 607
Body: Forged Carbon Fully Killed Steel
Trim: Inconnel Cladded
Size: 24 Inch, DN600
Class: 2500 LB, PN420
Face to Face: ASME B16.10
Bore: Full Opening
End Connection: Butt Weld End
Operation: Wrench Operated
Service: Gasoline, Finished Petroleum Products
