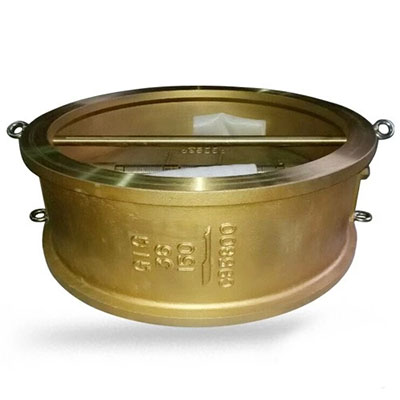

Dual Plate Check Valve
- Home
- Products
- Industrial Valve
- Angle Seat Valve
- Pneumatic angle seat valve
- 100 Series Pneumatic Angle Seat Valve
Technical Parameters
Design standard: ASME B16.34.
Body material: Nickel Aluminum Bronze, ASTM B148 C95800.
Nominal diameter: 36 Inch, DN900.
Pressure: Class 150 LB, PN20.
End connection: Wafer.
Face to face: ASME B16.10.
Working temperature: -198℃ - +260℃.
Test and inspection: API 598.
Product Range
Body material: Low Temperature Carbon Steel, Carbon Steel, Stainless Steel.
Normal diameter: 2 Inch - 60 Inch (DN50 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 LB - 2500 LB (PN16 - PN420).
Working temperature: -196℃ - +600℃.
