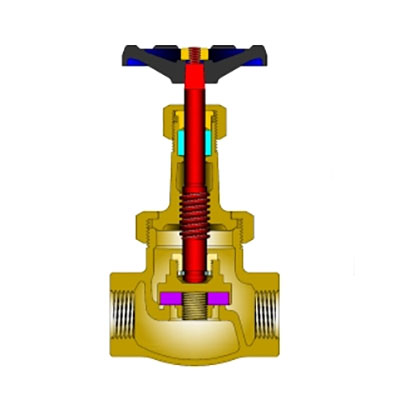

Bronze Union Bonnet Globe Valve
- Home
- Products
- Industrial Valve
- Angle Seat Valve
- Pneumatic angle seat valve
- 100 Series Pneumatic Angle Seat Valve
Technical Parameters
Product: Bronze Union Bonnet Globe Valve.
Size: 1/4-3 Inch.
Pressure: Class 150 LB.
Bonnet & Body: ASTM B62.
Disc Nut: ASTM B62.
Stem: B371 C69400.
Packing Nut: ASTM B62 or B374 C69400.
Gland: ASTM B16.
Packing: Graphite.
Hand Wheel: A47 Gr. 32510.
Hand Wheel Nut: Brass.
General valve design: MSS SP-80.
Thread design: ASME B1.20.1.
Other features
Union Bonnet
Threaded Ends
Renewable Composition Disc
