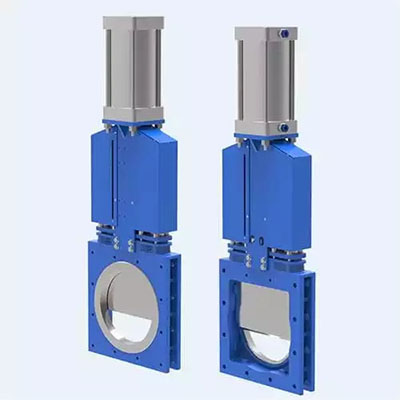

Technical Parameters

Design Standard: MSS SP-81

Flange Standard: PN10, PN16, 150LB , JIS 10K, TABLE E/D

Face to Face: MSS SP-81

Testing Standard: EN 12266

Size: 28 Inch, DN700

Pressure: 3 Bar, 150 LB

Transmission: Manual, Electric, Pneumatic, Hydraulic, Sprocket, Electro-Hydraulic, Gear

Main material: ASTM A351 CF3M, CF8M, CF8, ASTM A216 WCB, Ductile Iron GGG40

Disc material: SS 316L, SS 304

Sealing material: EPDM, Metal to Metal

Packing: PTFE, High WaterBased, Rubber Packing, Graphite

Applicable medium: Applicable for Dust, Solid Particles, Coal, Oil, Chemical and so on. Slag, cinder, Dislagging Recommend
