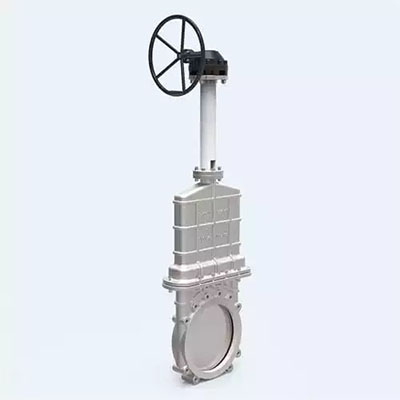

Unidirectional Seal Knife Gate Valve
- Home
- Products
- Industrial Valve
- Angle Seat Valve
- Pneumatic angle seat valve
- 100 Series Pneumatic Angle Seat Valve
Technical Parameters
Type: Wafer
Working Pressure: DN500 - DN2000, 20 - 80 Inch, 25 bar, DN2200 - DN3000, 88 - 120 Inch, 16 bar
Design Standard: MSS SP-81
Flange Standard: DIN PN10, PN16, 150 LB, JIS 10K, TABLE E/D
Face to Face: MSS SP-81
Testing Standard: EN 12266
Transmission: handwheel, electric, pneumatic, hydraulic, sprocket, electro-hydraulic, gear
Main material: ASTM A182 F55, F53, 2205, SS 310, ASTM A351 CF3M, CF3, CF8M, CF8, ASTM A216 WCB
Disc material: F55, F53, 2205, SS 310, SS 316L, SS 316, SS 304
Sealing material: NBR, NR, EPDM, FKM, Metal to Metal
Packing: PTFE,high water based,rubber packing,graphite
Applicable medium: Applicable for coal in power plant, slag discharge, sewage treatment, food, paper making, medicine, petroleum and chemical industry, water, Oil, steam, connecting or cutting grout, gold powder, ores, slag, coal, pulp, wood pulp, tailings, fibers, dust, chemicals, sewage treatment, sedimentation tanks, asphalt, bunker export, cereals, slaughter plant waste and other media.
Bi-directional seal available
