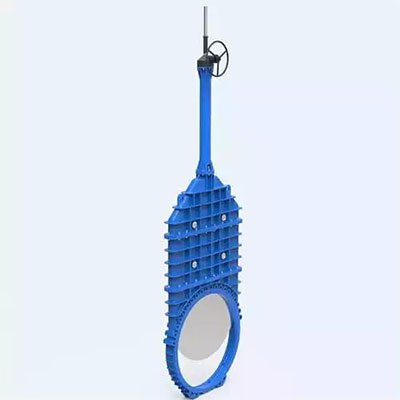

Knife Gate Valve
- Home
- Products
- Industrial Valve
- Angle Seat Valve
- Pneumatic angle seat valve
- 100 Series Pneumatic Angle Seat Valve
Technical Parameters
Type: Wafer, Lug, Flange
Design Standard: MSS SP-81
Flange Standard: DIN PN10, PN16, Class 150 LB , JIS 10K, TABLE E/D
Face to Face: MSS SP-81
Working Pressure: DN500 - DN600, 20 - 24 Inch, 3 bar, DN700 - DN1400, 28 - 56 Inch, 2 bar, Class 150 LB
Testing Standard: EN12266
Transmission: handwheel, electric, pneumatic, hydraulic, sprocket, electro-hydraulic, gear
Main Material: ASTM A351 CF8M, CF8, ASTM A216 WCB, Ductile Iron GGG40
Disc Material: SS 316L, SS 304
Sealing Material: NBR, NR, EPDM, FKM, Metal to Metal
Packing: PTFE, high water based, rubber packing, graphite
Applicable Medium: Applicable for coal in power plant, slag discharge, sewage treatment, water, Oil, steam, connecting or cutting grout, gold powder, ores, slag, coal, pulp, wood pulp, tailings, fibers, dust, chemicals, sewage treatment, sedimentation tanks, asphalt, bunker export, cereals, slaughter plant waste and other media.
