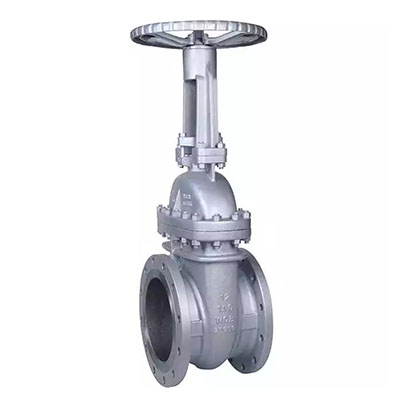

Technical Parameters

Standard: API 600, ASME B16.34

Feature: Outside Screw and Yoke (OS & Y), Non-rotating rising stem, Non-rising handwheel

Body Materials: ASTM A216 WCB, Cast Steel, Carbon Steel, Low Temperature Carbon Steel, Alloy Steel, Stainless Steel, Al-bronze.

Trim: API 600 trim, Trim No. 1, 10, 5, 8, 12

Disc: ASTM A216 WCB+13Cr

Stem: ASTM A182 F6a

Nut: ASTM A194 2H

Bonnet: ASTM A216 WCB

Pressure: Class 300 LB, PN50

Size: 36 Inch, DN900

Weight: 6885 kg

Connection Ends: RF, BW

Test: API 598

Face to Face Standard: ANSI B16.10
