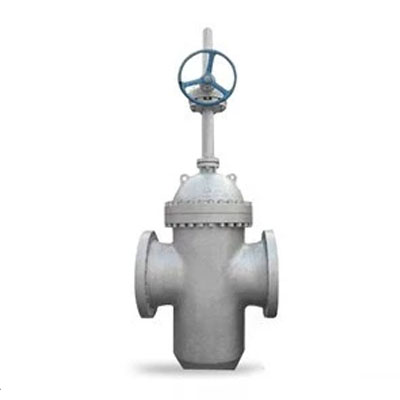

Through Conduit Gate Valve
- Home
- Products
- Industrial Valve
- Angle Seat Valve
- Pneumatic angle seat valve
- 100 Series Pneumatic Angle Seat Valve
Technical Parameters
Design Standard: API 6D.
Body Material: ASTM WCB.
Nominal Diameter: 30 Inch.
Pressure: CL600.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃ - +200℃.
Mode of Operation: Gearbox.
Test and Inspection: API 598.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2 Inch - 60 Inch (DN50 - DN1500).
End Connection: BW, Flanged.
Pressure Range: 150 LB - 2500 LB(PN16 - PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃ - +200℃.
Features: One Piece Type Body, Emergency Sealant Injection, Low Emission Packing, Fire Safe, Anti-static And Anti-blowout Stem, Valve Seat Function DBB, Optional Extended Bonnet, Cavity Pressure Self-relief.
