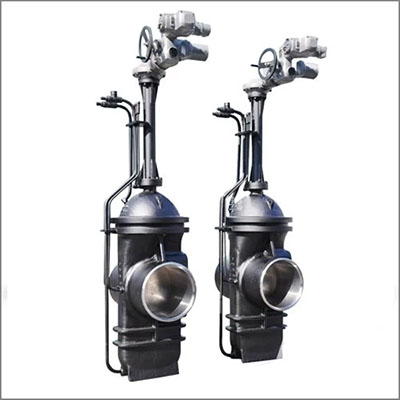

By-pass Flat Gate Valve
- Home
- Products
- Industrial Valve
- Angle Seat Valve
- Pneumatic angle seat valve
- 100 Series Pneumatic Angle Seat Valve
Technical Parameters
Design standard: API 6D.
Body material: ASTM A216 WCB.
Nominal diameter: 20 Inch.
Pressure: 600LB.
End connection: BW.
Face to face: ASME B16.10.
Working temperature: -29℃ - +425℃.
Mode of operation: Gear Operation.
Test and inspection: API 598.
Product Range:
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2 Inch - 60 Inch (DN15 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 LB - 2500 LB (PN16 - PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic, Electro hydraulic actuator, Gas over oil actuator.
Working temperature: -46℃ - +560℃.
