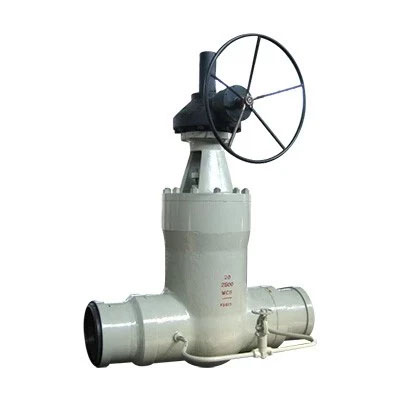

Pressure Seal Bonnet Gate Valve
- Home
- Products
- Industrial Valve
- Angle Seat Valve
- Pneumatic angle seat valve
- 100 Series Pneumatic Angle Seat Valve
Technical Parameters
Standards
Design and Manufacture: ASME B16.34.
Face to Face: ASME B16.10.
Test and Inspection: API 598.
Size: 20 Inch, DN500.
Pressure Rating: Class 2500 LB, PN420.
Body/Bonnet: ASTM A217 WC9.
Operation: Hand Wheel.
Connect Ends: BW.
Pressure seal bonnet (PSB) design.
Full port or reduced port design.
Back seal design.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
