Technical Parameters

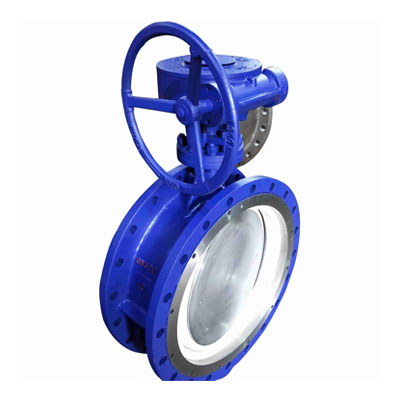

Description: Ceramic butterfly valve, abrasive, raised flanged, D343TC.
Design: JB/T 8691.
Body: ASTM A216 WCB
Nominal size: DN500.
Nominal class: PN16.
End Connection: RF flange
Face to face: GB/T 15188.2.
Test and inspection: JB/T 8691.
Product Range:
Body material: Carbon steel.
Normal diameter: 2 - 20 Inch (DN50 - DN500).
End connection: Flanged.
Pressure range: PN10-PN16.
Working temperature: -29℃ - +200℃.
Technical parameters and characteristics
| Product | Ceramic butterfly valve. |
| Nominal diameter | 2 Inch - 20 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | PN10-PN16. |
| Material | Carbon steel. |
| Design standard | JB/T 8691. |
| Face to face | GB/T 15188.2. |
| Connection end | Flange. |
| Test standard | JB/T 8691. |
| Package | Plywood |
| Application | industrial fields such as power, petroleum, chemical engineering, metallurgy, mining and sewage treatment. |
| Model | D343TC |
