Technical Parameters

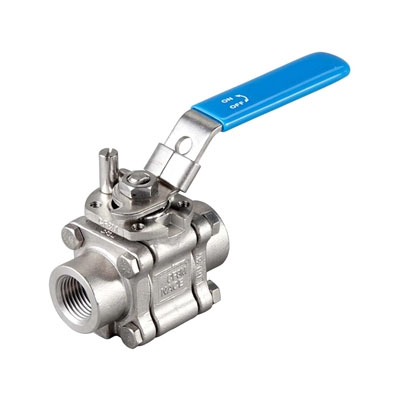

Product: Full Port 3PC Ball Valve.
Size: 1/4-2 Inch.
Working Temperature: -20℃-200℃.
End: Screwed End.
BODY: ASTM A351 CF8M, ASTM A216 WCB.
BALL: ASTM A351 CF8M.
SEAT: RTFE.
Gasket: Graphite.
PACKING: Graphite.
STEM: ASTM A276 316.
Port: Full port.
Handle: Stainless Steel.
Other features
Investment casting
Blow-out proof stem
Silicone Free
Anti-static device
Locking device
API 607 Fire Safe Approved
API 608 Design
